Shield Canopy™ - Agricultural Shelter

Shield Canopy is the industry-leading container canopy – creating temporary covered space or longer-term storage, making it an ideal alternative to the permanent steel shed.

Spanning between two standard shipping containers, Shield Canopy can be installed quickly without any permanent fixings, making it easy to create a sheltered area on the yard.

The multi-use space is perfect for grain storage, protecting tractors & machinery, covering a work area, and more.

Shield Canopy is available in widths of 8 metres, 10 metres, or 12 metres, and can be specified in lengths to fit standard 20ft & 40ft shipping containers.

Designed to perform in tough conditions

Shield Canopy’s MAGNAtube® steel framework is clad in a hard-wearing waterproof cover, providing a robust shelter from adverse weather. Designed and manufactured in the UK, Shield Canopy is engineered to British & European standards for wind and snow loading, so it’s more than capable of standing up to harsh conditions.

Enquire now for information and pricing

Use our request a callback button to submit your details and our sales team will be in touch to discuss your requirements.

Product Specifications

Heavy-duty frame
Shield Canopy™ combines heavy-duty MAGNAtube® and Z35 structural steel in its framework to ensure it stands the test of time. With our cross-bracing and tensioning system, the canopy is highly resistant to damage from adverse weather.

Unique clamping system
Our clamping bar uses a special configuration of clamps and fixing plates to secure the canopy frame to each shipping container without any cutting, drilling, or welding. The clamping bar utilises a neoprene rubber strip to create a seal between the canopy and the containers, minimising any water ingress into the covered area.

Durable PVC canopy cover
The canopy’s cladding is constructed from a 600gsm PVC coated fabric, which is fully tensioned across the steel frame. The fabric cover is capable of exceeding 20+ years in lifespan.

Designed to withstand wind & snow
Shield Canopy™ is engineered to perform in demanding conditions. Wind loading is calculated to 500N/m2 (equivalent to 102km/h)  in line with European standard BS EN 1993. Snow loading is calculated to 420N/m2 and drifted snow load is calculated to 840N/m2, in line with BS EN 1991.

Simple to install
The canopy has been designed and manufactured for ‘self-build’ installation and comes with detailed instructions for assembly. If required, installation can be provided as part of a comprehensive supply package within mainland Britain. Shield Canopy™ is available for delivery worldwide.



Optional Features

Shield Canopy™ can be configured to suit your site, creating the perfect sheltered space to fit your requirements.

Partial Gable End Wall
Also known as a “gable D section” or a “half moon”, this end panel can be optionally specified at one or both ends of the canopy structure to provide additional protection from the elements.

Full-Height Gable Wall
To completely enclose one end of the sheltered area, we offer an optional full-height wall panel.

For help configuring your ideal Shield Canopy™ solution, click here to request a callback from our canopy specialists.

Testimonials

I needed a housing solution ASAP and the Agri Span™ fit the bill and more. The Agri Span™ keeps my calves healthy and was delivered incredibly quickly. A brilliant product and service!

Stuart Perry
Nower Dairy, Axminster

“My calves are happy and healthy running about underneath the Livestock Pop-Up. The structure is really well made and looks great on my farm. My feed representative even commented on how great it is for the calves! Planning to buy another Livestock Pop-Up in the future.”

Adam Lowe
Unthank Farm

“Extremely happy with our McGregor building. We started with one and have now purchased two poultry tunnels, both have worked out really well and look great!”

Jason Bryan
Valleyview Farm

“McGregor was very helpful, delivering at short notice – The Agile layer house is excellent for small flocks”

Mick Racjan
Fungi Delecti

“McGregor provided me with housing for my goats and sheep. They kept me updated on the progress of my order. I received the kit for 2 Livestock Pop-Ups in batches to allow us to get started with the build and followed through in perfect time with the remaining parts.”

Julie Comins
Elchies Estate Limited

Latest Projects

Housing the Kelly Bronze

Kelly’s Turkeys

Identifying the opportunity to take control of the complete lifecycle of free range turkeys from inc...

From farm to fork

Daylesford Organics

With a simple passion for ‘real’ food, Daylesford Organics has become an award winning o...

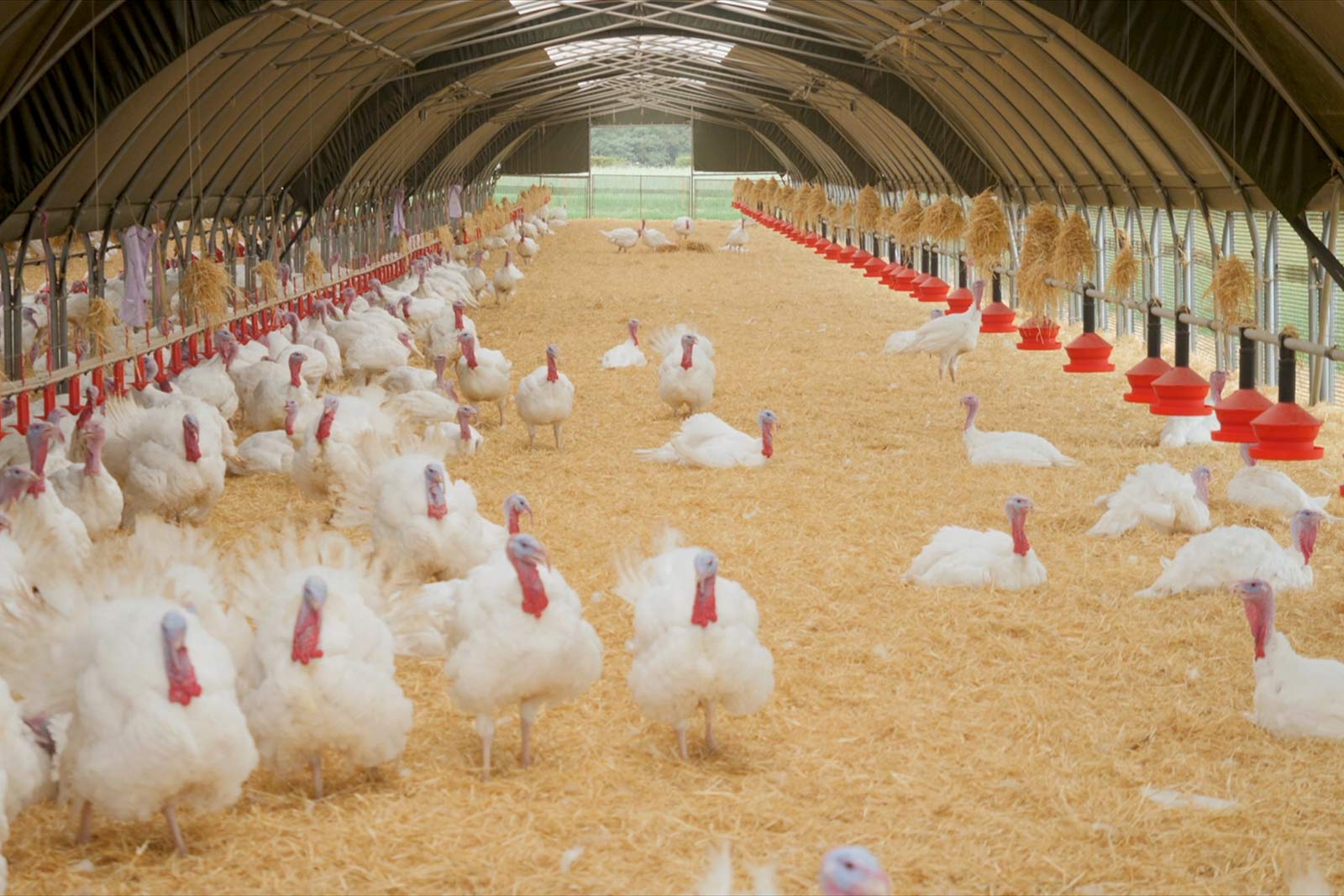

Turkey Pop-Up Tunnel
